The Auto-Jog 9000

The AutoJog 9000 is a custom mechanism accompanied with PLC program modification. It automates the table jog sequence on a bicycle rim cutting machine which previously had to be jogged manually.

✓ Improved process consistency

✓ Improved cut quality

✓ Less physical strain on worker

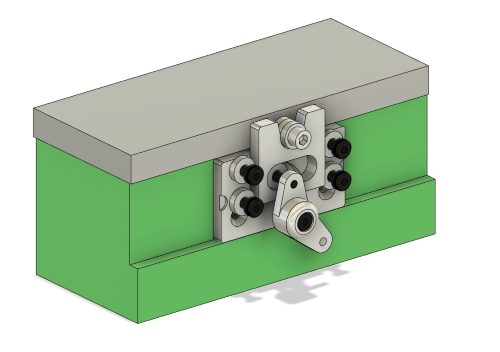

The AutoJog mechanism was designed to bolt to the machine with little modification, and to be operated by the machine’s original PLC. Considerations included: spare inputs/outputs on existing PLC, existing voltage and wiring scheme, physical space, operator experience and interaction, parts on hand, mechanism longevity, etc.
